Faber Trinity ™
Ultra-Low NOx Burners
Faber’s innovative patent-pending burner technology: TRINITY ™ has spawned the TMB family of leading-edge Ultra-Low NOx burners that efficiently delivers single-digit NOx performance without the need for catalysts, external flue-gas recirculation, or high excess air.
TMB Burners are engineered with the rugged reliability expected of “Faber Tough” products, TRINITY is designed for a wide range of applications including boilers, heaters, dryers, and process furnaces.
One Technology
Infinite Scalability
Reliable Performance

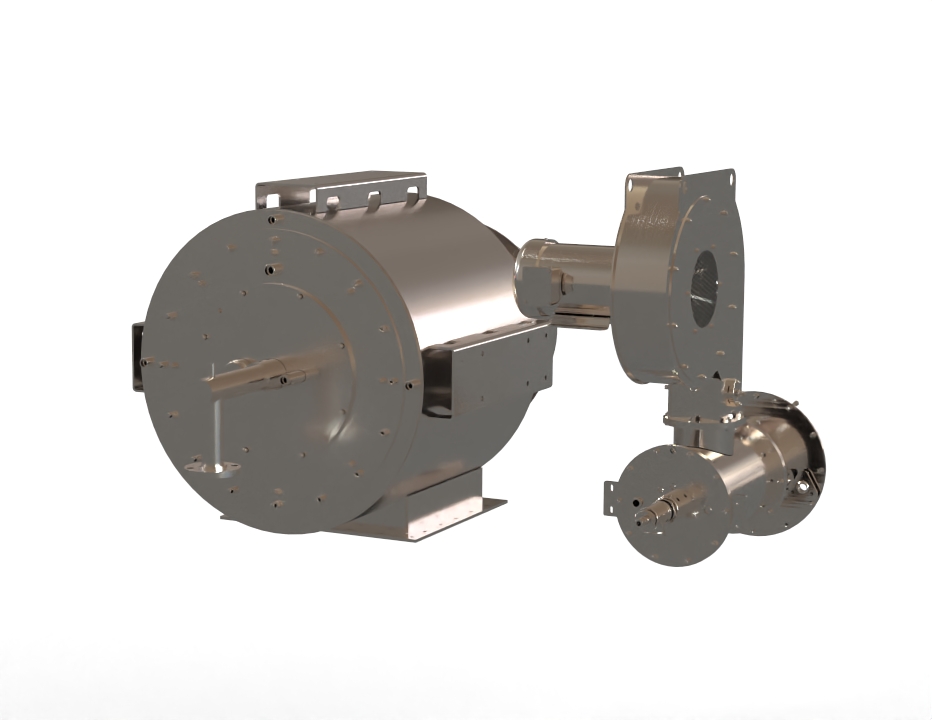

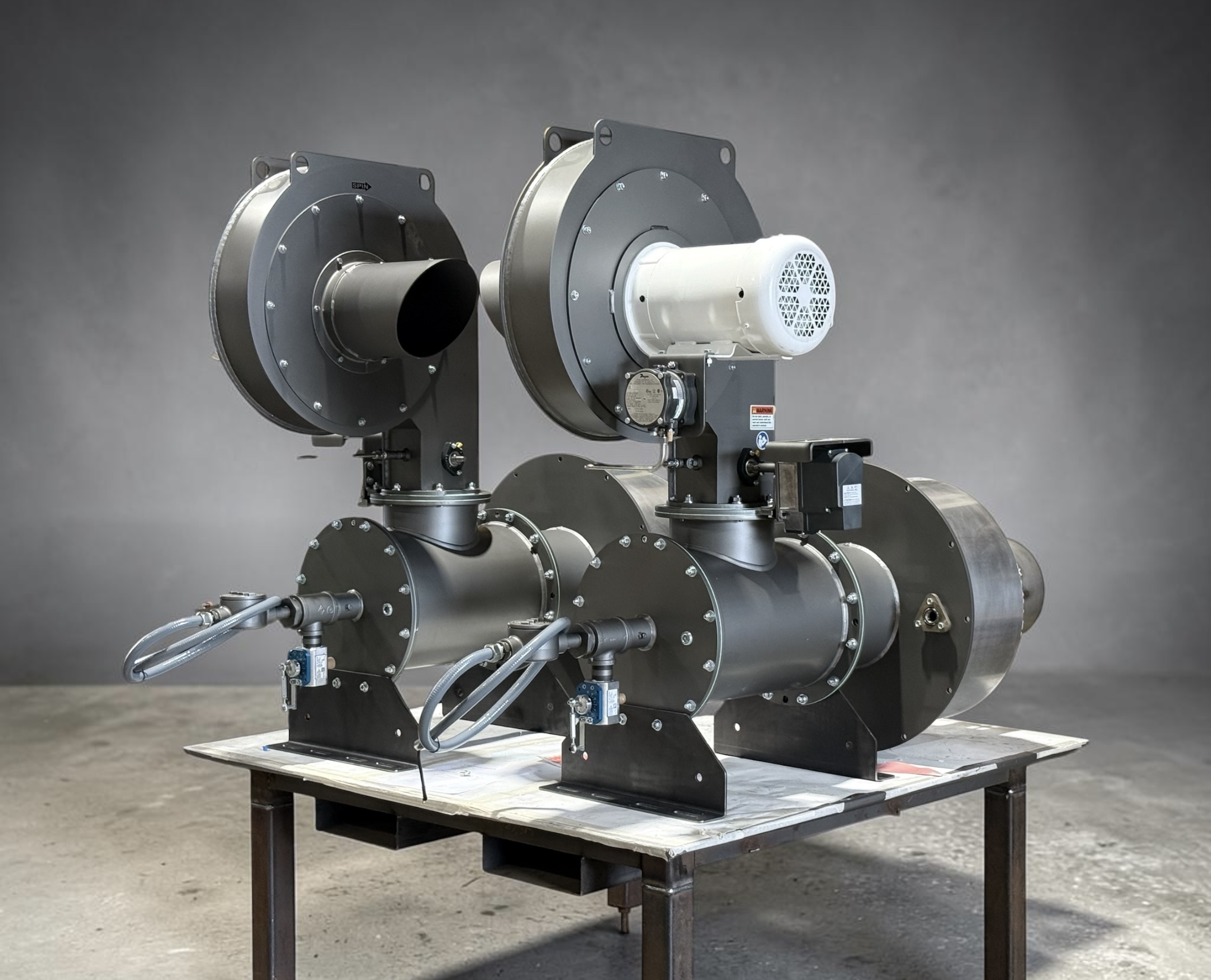

The Trinity Premixed (TMB) Burner is a robust industrial package burner designed to deliver single-digit NOx performance for the most stringent environmental applications.
It combines patent-pending technologies to produce these emissions without the need for catalysts, external flue-gas recirculation (FGR), or high excess air.
The standard burner features a “Faber Tough” housing, different fan mounting assemblies, and precision-engineered mixing components. It operates efficiently on Natural Gas and Propane with near-zero CO emissions. The design allows for seamless integration with various burner management systems and is adaptable to different air/fuel control schemes to maintain the precise ratio required for premixed operation.
Ultra-Low NOx without Sacrifice.
Intuitive
Design
Precisely Controlable
Repeatable
Performance
Distinguished Performance
Premixed Burner NOx < 9 ppm
The burner is ideal for many industrial applications including:
- Single-Digit NOx Performance
- Boilers, heaters, dryers, and process furnaces
- Industrial process heating
- Capacities from 4 to 25 MMBTU/Hr.
(Scalable designs available) - Rugged, & Reliable
- Short Compact Flame Geometry
- Ultra Low Emissions (NOx, CO, VOC, & PM)
- Outdoor or Indoor Applications
- User-Friendly Tuning
- Quick Delivery
Simple, Rugged, & Reliable
- Single-Digit NOx (No FGR or Catalysts needed
- High Efficiency (Operates at ~4% O₂)
- Near-Zero CO Emissions
- Indoor or Outdoor Applications
- Patent-Pending Technology
Every Forefront Burner comes complete and includes
- motor and blower
- integral air damper and actuator
- Faber-quality housing with lifting lugs
- direct spark igniter
- UV scanner
- sight glass
- combustion air tap and fuel pressure test ports
- customizable air/fuel control options
