Forefront APT Burners
The Forefront Advanced Pollution-reduction Technology (APT) Burner is a rugged industrial package burner designed to meet the increasing demands for Ultra Low NOx applications.
The Forefront Advanced Pollution-reduction Technology (APT) Burner is a rugged industrial package burner designed to meet the increasing demands for Ultra Low NOx applications. It is a fully modulating nozzle-mix burner. We have performed Advanced computational analysis (CFD) and experimentations to develop a superior but simple mixing strategy to reduce the emission generated by the burner.

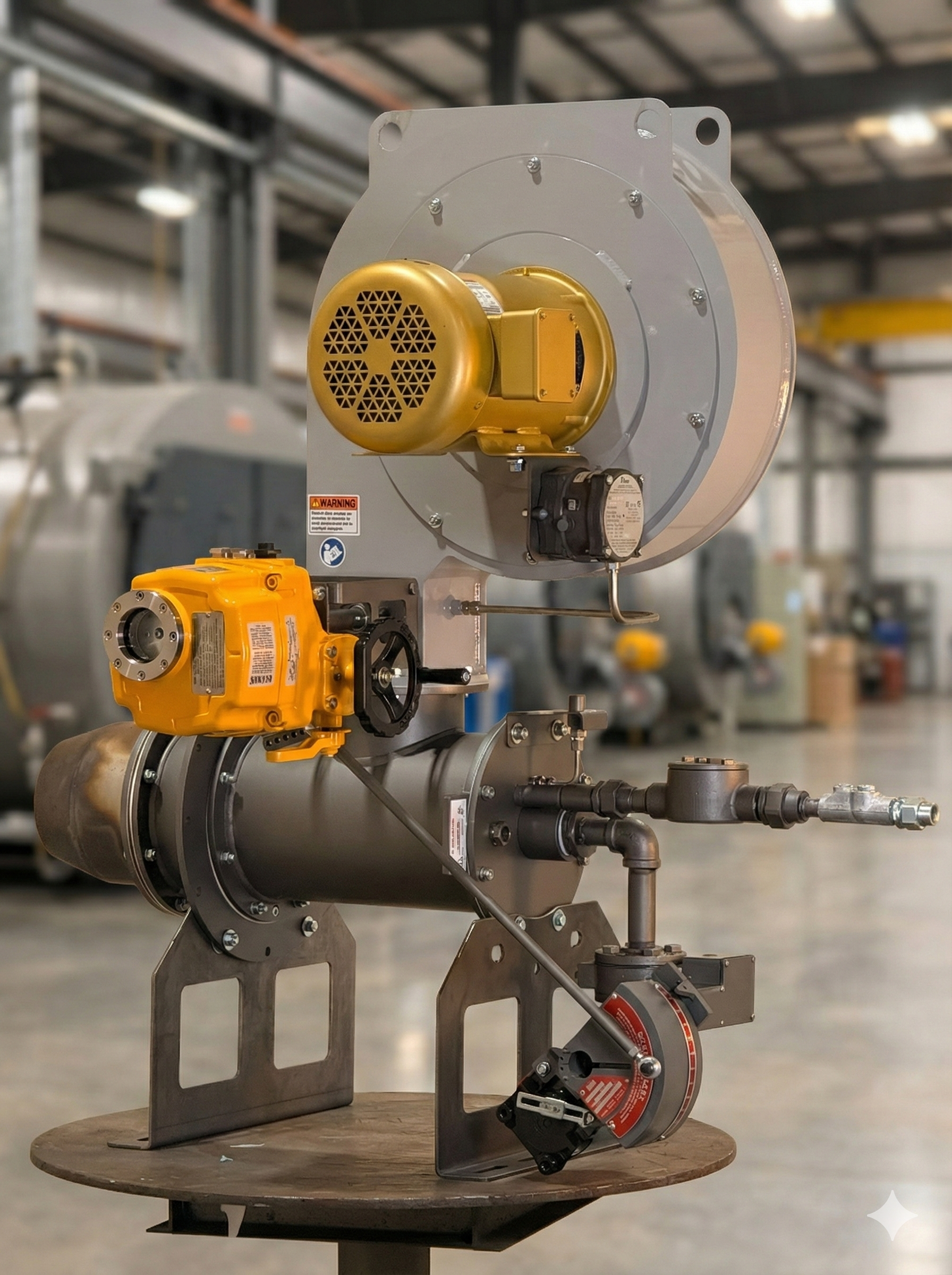

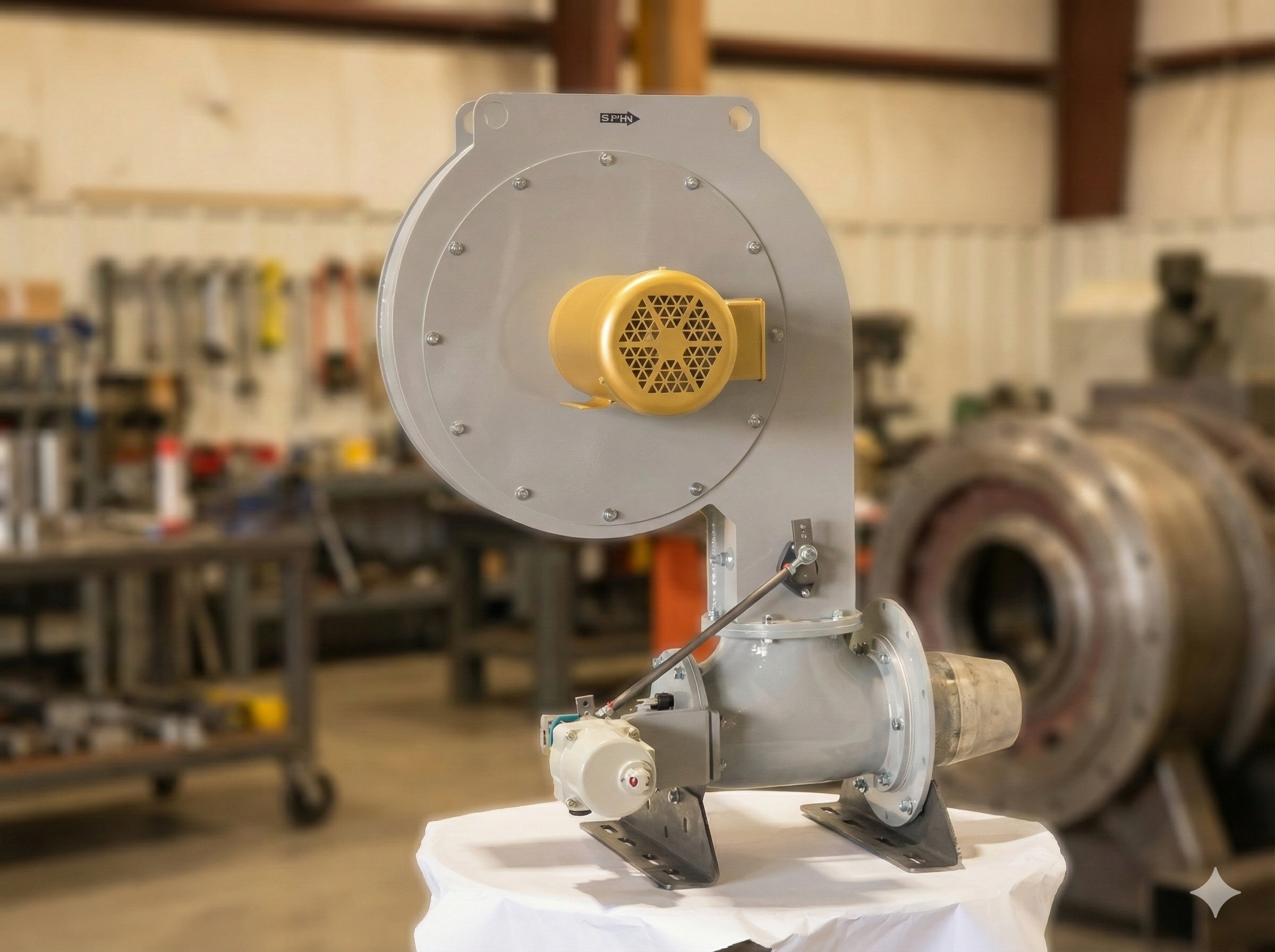

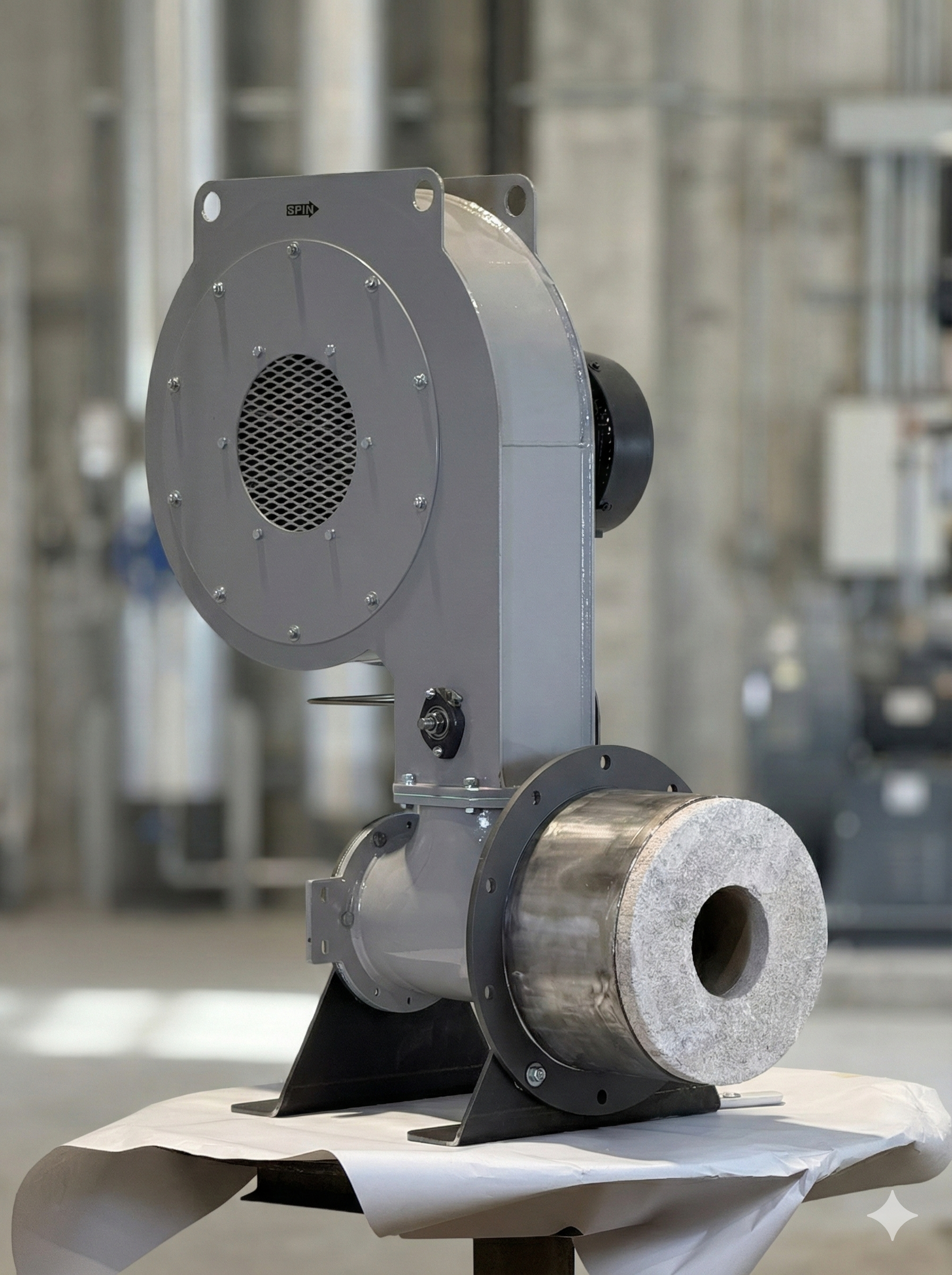

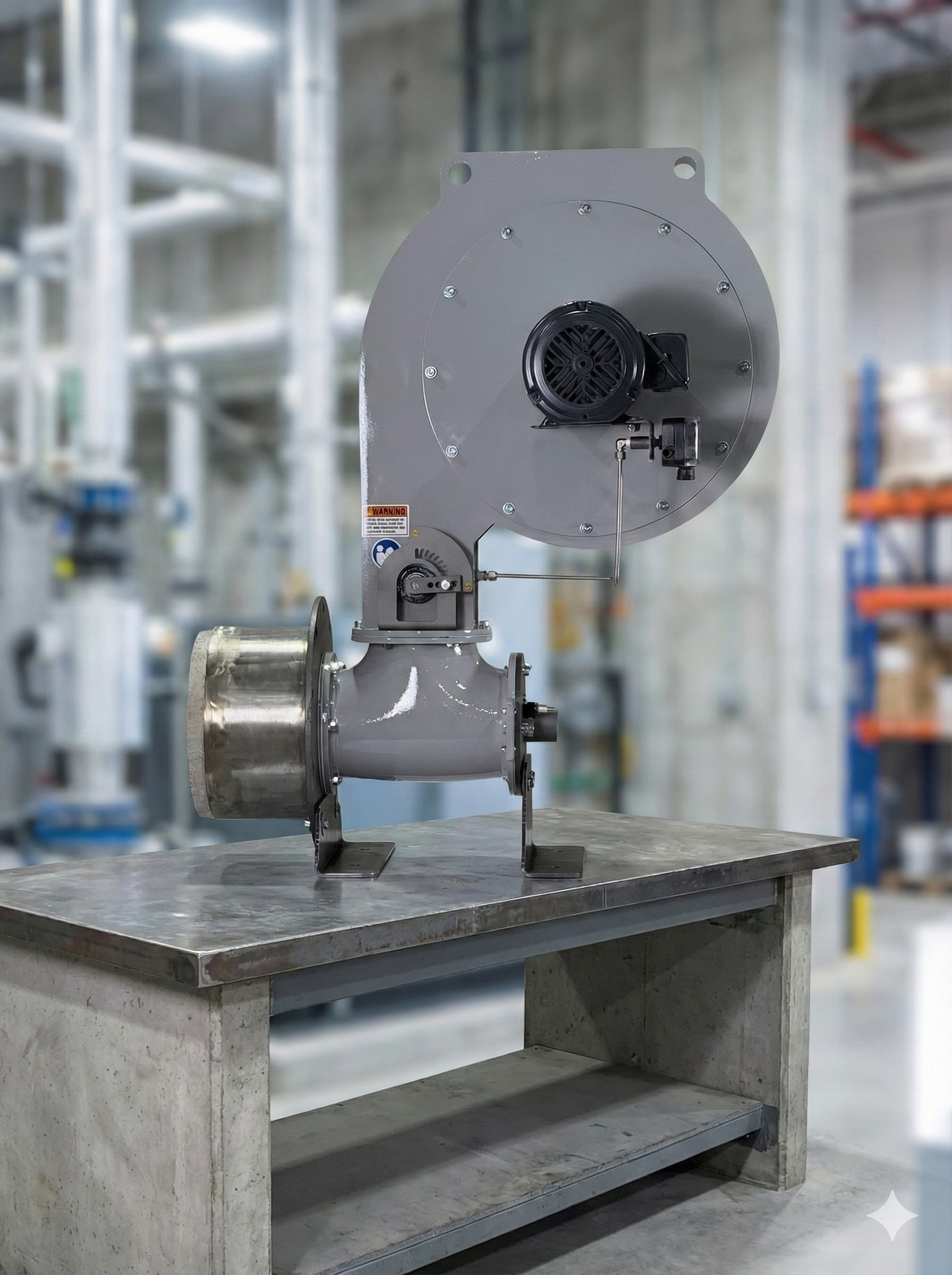

The standard burner includes an all-steel burner housing, top mounted fan assembly with integral air damper, stainless steel burner throat, direct spark ignitor, combustion air switch, gas valve, and actuator. A flame rod or a UV scanner can be used for flame detection. Various burner configurations and fuel option are available. APT burners can be adapted to different air/fuel control schemes, such as fixed air, single point positioning with cam valve, and parallel positioning.
The burner is ideal for many industrial applications including:

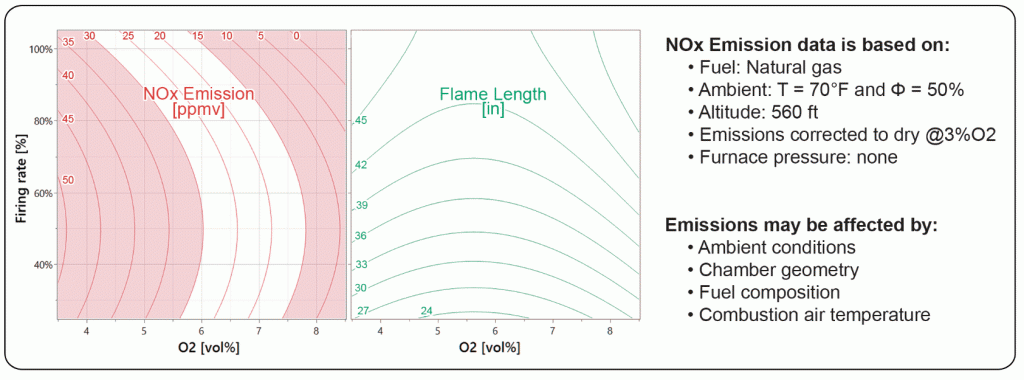

- Ultra-low NOx (<30 and <20 ppm)
- Air heaters, ovens, dryers, and kilns
- Process heaters, small boilers, and industrial furnaces
- Thermal oxidizers
- Capacities from 1 to 6 MMBTU/Hr.
- Simple, Rugged, & Reliable
- Short Compact Flame Geometry
- Ultra Low Emissions (NOx, CO, VOC, & PM)
- Outdoor or Indoor Applications
- User-Friendly Tuning
- Quick Delivery
Every Forefront Burner comes complete and includes
- motor and blower
- air damper, combustion air switch, gas valve, and actuator
- all steel burner housing with lifting lugs
- direct spark igniter
- flame rod
- sight glass
- stainless steel burner throat
- combustion air tap
- fuel pressure test port
- various air/fuel control options:
– adjustable linkage rod
– Faber cam valve system
– fixed air
– parallel positioning
